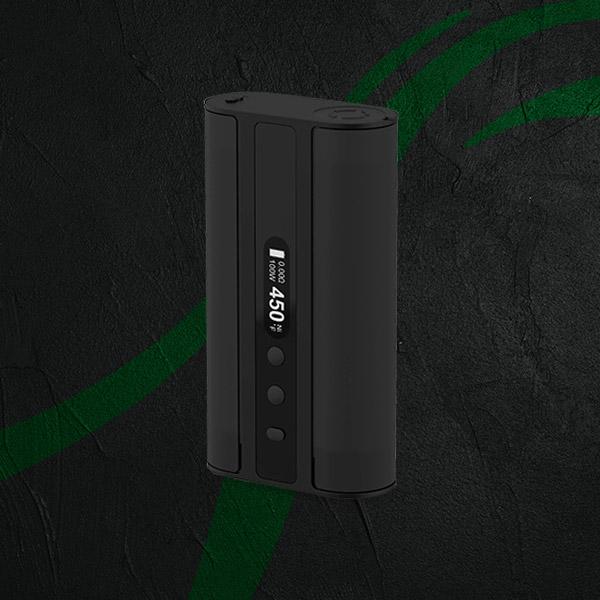

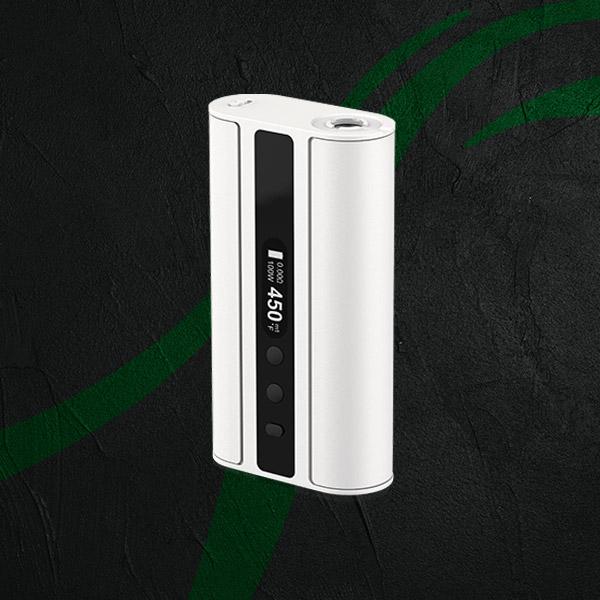

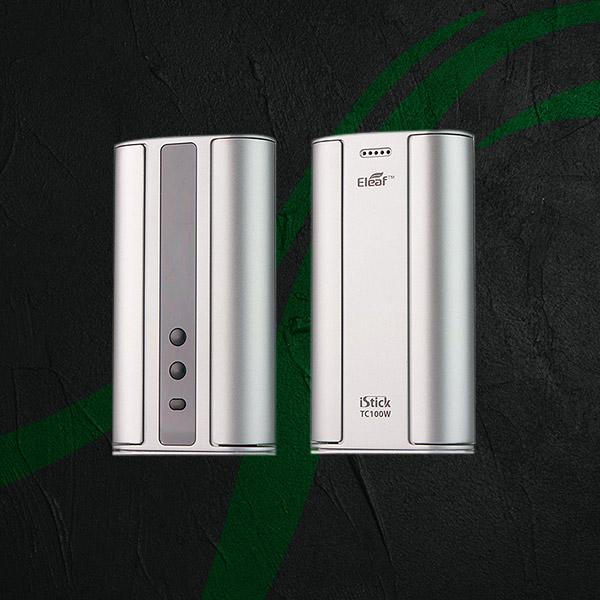

Eleaf iStick 100W TC Parallel 18650 Mod

The Eleaf iStick 100W TC is an updated revision of the iStick 100W, introducing a sophisticated temperature control suite, an extended range of 1 to 100W, a smaller compact form factor, and dual cutaway battery doors in which one also functions as the firing mechanism. The iStick 100W TC utilizes Eleaf's updated chipset that features 1 to 100W of output with an atomizer resistance range of 0.1 to 3.5 ohms.

A sophisticated temperature control suite features onboard support for Ni200 Nickel, Titanium, and 316 Stainless Steel alongside a three memory adjustable TCR mode that allows for even more precise temperature output. Base resistance can also be set, ensuring strong and consistent performance through the life of the coil structure.

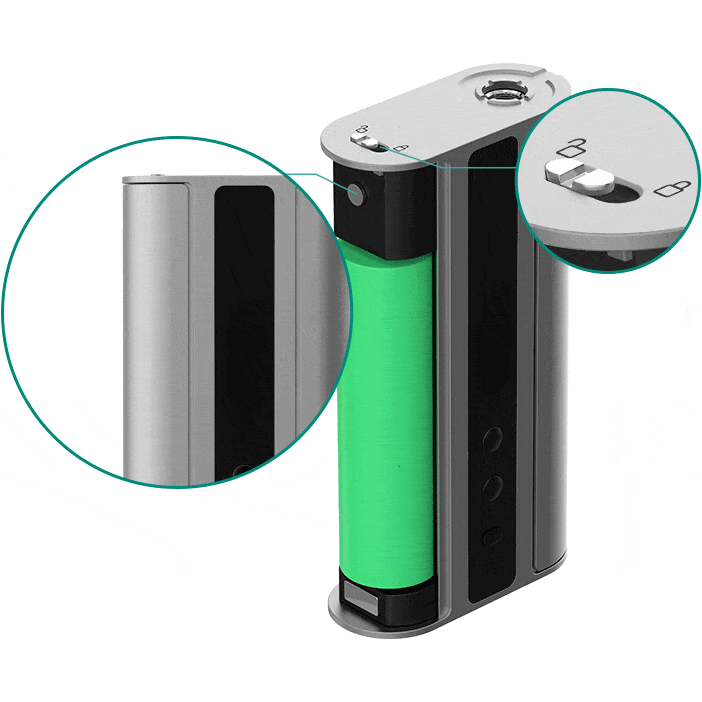

Designed around improving the tried and true box mod form factor, the iStick 100W TC improves upon its predecessor by reducing overall size to create a more ergonomic form factor. The design now features dual cutaway doors secured magnetically, allowing the control face to move directly within the center point of the chassis.

This design runs concurrently with the move towards a parallel powered chipset, giving users the flexibility to utilize a single battery for up to 75W of output or two batteries for 100W of output.

To further reduce size, the firing mechanism now is integrated into one of the battery doors, giving the iStick 100W TC great ergonomics while having a fully mechanical locking switch that prevents accidental firing and activation. With a perfect balance between size, functionality and battery life, the Eleaf iStick 100W TC is a high performance device that carries on the storied heritage of Eleaf Box Mods.

Please Note: Batteries must be matched in brand, model and battery state at all times. Discharge and recharge batteries within the same grouping of two. Failure to do so may result in injury. Never use damaged or improperly wrapped batteries with this device.

Product Specifications:

• 1 to 100W Output Wattage
  • 0.1 to 3.5 ohm
  • Firmware Upgradeable
  • Now Available to Upgrade to 120W!
• TCR Controllable Temperature Output
  • Ni200 Nickel Support
  • Titanium Support
  • Stainless Steel Support
  • Three TCR Modes
  • Base Resistance Lock Functionality
  • 200 to 600 Degrees Fahrenheit
  • Firmware Upgradeable
  • 0.05 to 1.5 ohm
• Dual Magnetized Doors
  • Cut Away Both Sides
  • Utilizes High Amperage 18650 Batteries *BATTERIES NOT INCLUDED* - (available here).
• Parallel Battery Structure
  • Can Be Run in Single Battery Mode
    • 75W Maximum
  • Dual Battery Mode
    • 100W Maximum
• Centrally Located Control Face
  • Adjustment and Mode Buttons
  • OLED Display
• Stealth Firing Mechanism
  • Doubles as Battery Door
  • Can Be Mechanically Locked
  • Comfortable and Ergonomic
• 1A Micro USB Charging and Firmware Update Port
• Low Voltage Protection
• Temperature Protection
• Advanced Temperature Alert
• Atomizer Protection
• Short Circuit Protection

• 52mm x 23mm x 94mm

• One Eleaf iStick 100W TC Box Mod
• One Manual
